VN-110

IMU / AHRS

Introduction

The VN-110 is a Tactical Grade Inertial Measurement Unit (IMU) and Attitude Heading Reference System (AHRS). The VN-110 incorporates the latest MEMS sensor technology, combining a 3-axis accelerometer, a 3-axis gyroscope and a 3-axis magnetometer into a compact and rugged package. Along with providing calibrated sensor measurements, the VN-110 also computes and outputs a real-time 3D orientation solution that is continuous over the complete 360 degrees of motion

< 0.05˚

Static Pitch/Roll

0.6°/hr

Gyro In-Run Bias

< 10 µg

Accel In-Run Bias

±15 g

Accelerometer Range

±490˚or ±2000˚/s

Gyroscope Range

800 Hz

IMU Data

PRODUCT BRIEF
USER MANUAL

PRODUCT HIGHLIGHTS

Rugged Device Design

IP-68, DO-160G, MIL-STD-1275E, MIL-STD-461G, MIL-STD-810G

Hard/Soft Iron

Onboard Hard/Soft Iron compensation

Vector Processing Engine (VPE) 2.0

Real-time magnetic & acceleration disturbance rejection, adaptive signal filtering and dynamic filter tuning.

High Data Outputs

400 Hz Navigation Data and 1 kHz IMU Data

Ultra Low SWaP

< 172.13 cm3; < 160 grams; < 2.5 W

User Configurable Messages

ASCII & VectorNav Binary messages

Ease of Availability

Made in the USA, ITAR-free, & ships within 1 week

Industry Best Lead Times

VectorNav prides itself in offering the shortest lead times and best pricing in the industry. The VN-110 has a standard lead time of just 3-4 weeks. Contact us now for pricing and availability on the VN-110 or VN-110E.

Contact Us
;

Overview

Utilizing the latest advancements in Microelectromechanical systems (MEMS) technology, the VN-110 incorporates a suite of tactical-grade inertial sensors, including a 3-axis accelerometer, 3-axis gyroscope and 3-axis magnetometer. The VN-110 has been designed to achieve the highest performance possible by incorporating VectorNav’s experience producing MEMS based inertial sensors and proprietary filtering algorithms optimized through a decade of field experience.

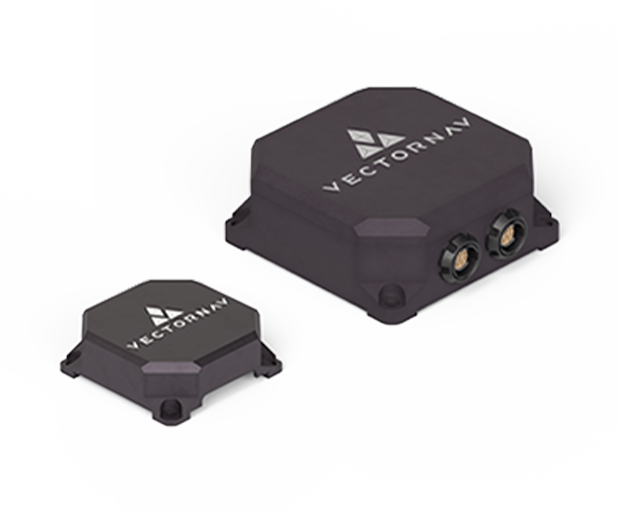

The VN-110 is available in two packaging options: a precision milled, anodized aluminum enclosure designed to meet DO-160G standards. With dual I/O connectors the VN-110 offers maximum flexibility for interfacing with external GNSS receivers and IMUs. Alternatively the VN-110 is available in a miniature, board-mount option delivering tactical-grade IMU performance i compact package bringing unprecedented capability to SWaP-C constrained applications.

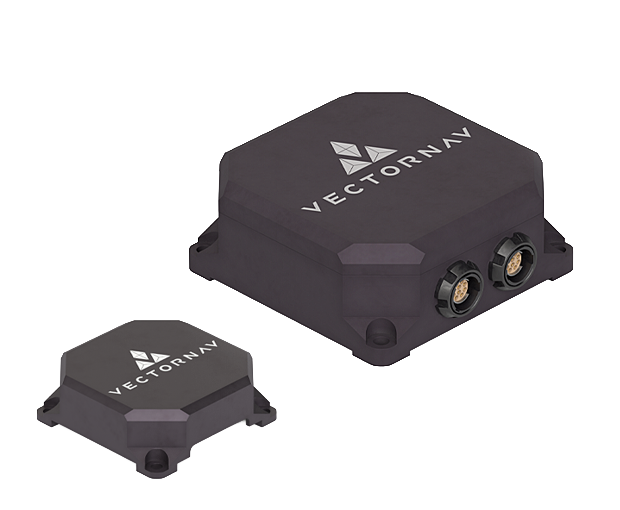

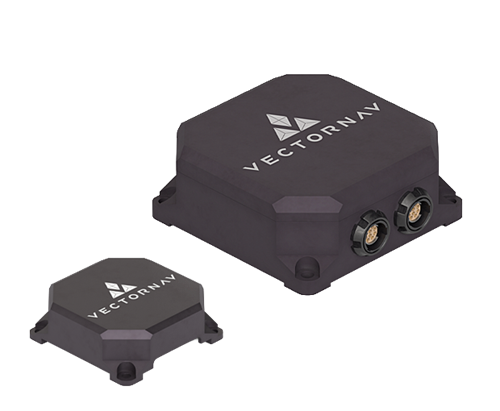

Packaging Options

VN-110 Front_Small

IP Package
Size: 56 x 56 x 23 mm
Power: <2 W
Weight: 125 g

VN-X10E Front_Small

Embedded
Size: 31 x 31 x 12 mm
Power: <1 W
Weight: <12 g

Sensor Summary:

  • Continuous attitude solution over the complete 360° range of operation

  • VectorNav Processing Engine (VPE) for disturbance rejection, adaptive filtering, dynamic filter tuning

  • Inputs for external magnetometers or velocity measurements (Airspeed, GPS)

  • Hard/Soft Iron Compensation

  • On-board World Magnetic and Gravity Reference Models

  • All sensors are individually calibrated for bias, scale factor, misalignment, and temperature over full operating range (-40° C to 85° C)

  • Up to 1 kHz IMU Data

  • 400 Hz attitude data - Yaw/Pitch/Roll

  • Coning and sculling integrals (ΔV’s, Δθ’s)

  • Data output format: ASCII (VectorNav), NMEA-0183, Binary (VectorNav)

  • Tactical Rugged IP 68 rated enclosure designed to DO-160G

  • Vibration: MIL-STD-810G, EMI: MIL-STD-461G, Electrical: MIL-STD-1275E

  • VectorNav Control Center freely available for easy setup, configuration and logging

  • ITAR-Free

Specifications

Range (Heading/Yaw, Roll)

± 180°

Range (Pitch)

± 90°

Heading (Magnetic)*1

2.0° RMS

Pitch/Roll (Static)

0.05° RMS

Pitch/Roll (Dynamic)*2

1.0° RMS

Angular Resolution

0.001°
*1With proper magnetic declination, suitable magnetic environment and valid hard/soft iron calibration.
*2Typical; Velocity Aiding required for applications with sustained linear accelerations.

Range

±15 g

In-Run Bias Stability

< 10 μg

Noise Density

0.04 mg/√Hz

Bandwidth

200 Hz

Cross-Axis Sensitivity

±0.05°

Range*1

±490°/s (Optional ±2000°/s)

In-Run Bias Stability

< 1°/hr (0.6°/hr typ.)

Noise Density

5°/hr /√Hz

Cross-Axis Sensitivity

< 0.05°

Bandwidth

210 Hz
*1Contact VectorNav for Extended Range Gyro Option

Range

±2.5 Gauss

In-Run Bias Stability

-

Noise Density

140 μGauss/√Hz

Bandwidth

200 Hz

Cross-Axis Sensitivity

±0.05 °
VN-110E

Size

31 x 31 x 12 mm

Weight

12 g

Interface Connector

24-pin CLR
VN-110

Size

56 x 56 x 23 mm

Weight

125 g

Interface ConnectorInterface Connector

Circular Push-Pull Fischer UltiMate (10-pin x 2; Size 7)

Operating Temperature

-40° to +85° C

In-Storage Temperature

-40° to +85° C

MTBF

> 45,000 hours
VN-110E

Input Voltage

3.2 to 3.5 V

Current Draw

280mA @ 3.3 V

Power

< 1 W

Digital Interface

(2) Serial TTL

Baud Rate

Up to 921600

Input

Sync-In

Output

Sync-Out
VN-110

Input Voltage

12 to 34 V

Current Draw

80mA @ 24 V

Power

< 2 W

Digital Interface*1

RS-422

Baud Rate

Up to 921600

Input

Sync-In

Output

Sync-Out
*1VN-110: Optional RS-232 on Primary Port

DOCUMENTATION AND RESOURCES

TECHNICAL

VN-110 User Manual

DOWNLOAD

VN-110E User Manual

DOWNLOAD

VN-110E & VN-110 Datasheet

DOWNLOAD

VN-110 Mechanical Drawing

DOWNLOAD

VN-110 STEP File

DOWNLOAD

VN-110E Mechanical Drawing

DOWNLOAD

VN-110E STEP File

DOWNLOAD
SALES

VectorNav Product Brochure

DOWNLOAD

VN-110 Product Brief

DOWNLOAD

VN-110 Purchasing Guide

DOWNLOAD

VectorNav Tactical Embedded Brochure

DOWNLOAD

SOFTWARE

CONTROL CENTER

The new VectorNav Control Center provides you with a wide assortment of tools to visualize and inspect the wealth of data made available by your VectorNav sensor

DOWNLOAD

PROGRAMMING LIBRARY

The VectorNav programming library consolidates all of the varied programming libraries into a single downloadable package. Currently included programming libraries are:

C, C++, Labview, Matlab, .Net, Python, Unity

DOWNLOAD

EAGLE PCB FILES

The EAGLE Library contains footprints and parts for your schematics and layouts for CadSoft's EAGLE PCB software

DOWNLOAD

Development Kits

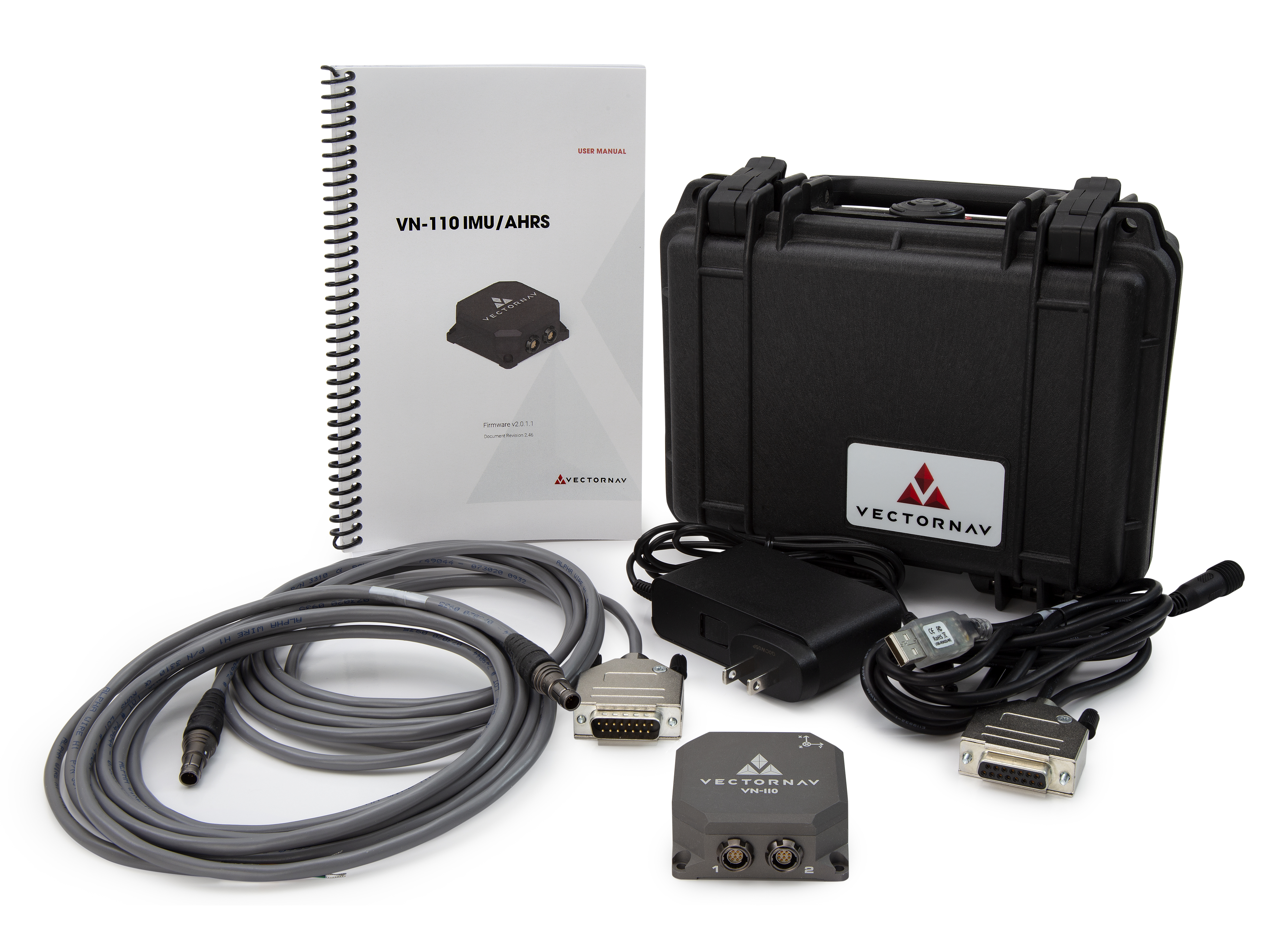

VN-110 Development Kit

Everything you need to get started with the VN-110 IMU/AHRS. The kit includes a VN-110 and interface cables. Please contact us for pricing and availability of this development kit.

CONTACT US

VN-110E Development Kit

Everything you need to get started with the VN-110E. The kit includes a development board, VN-110E and interface cables. Please click the link below contact us for pricing and availability of this development kit.

CONTACT US

VECTORNAV INERTIAL NAVIGATION PRIMER

Everything you need to know about inertial navigation.

READ
