UNPRECEDENTED PERFORMANCE AT YOUR FINGERTIPS
Intoducing VectorNav’s new Tactical Embedded line of inertial navigation systems.
IMU/AHRS GNSS/INS DUAL GNSS/INSTACTICAL EMBEDDED
Introduction

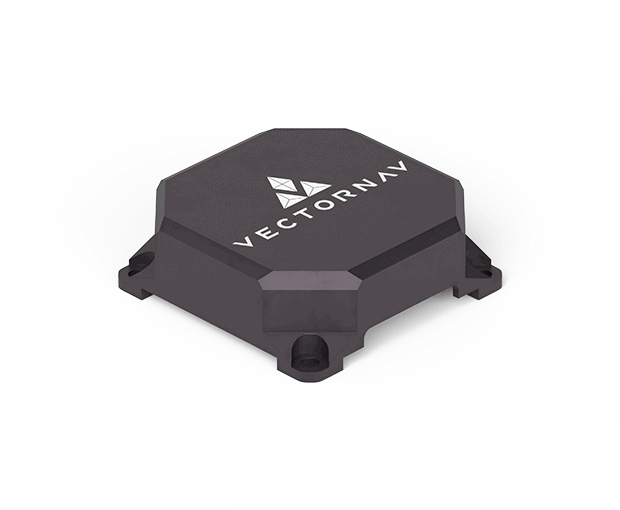

VectorNav introduces the Tactical Embedded, a miniature, board-mount option for the VectorNav Tactical Series line of IMU/AHRS, GNSS/INS and Dual GNSS-Aided INS products.
Delivering tactical-grade IMU performance in an ultra compact package, the Tactical Embedded brings unprecedented capability to SWaP-C constrained applications
0.05 - 0.1°
Heading
0.015°
Pitch/Roll
< 1°/hr
Gyro In-Run Bias Stability
±15 g
Accel Range
±490°/s
Gyro Range
< 14 g
Weight
PRODUCT HIGHLIGHTS
Multi-Constellation
GPS, Galileo, GLONASS,Beidou, QZSS, SBAS
Multi-band
Integrated L1/L2/E1/E5b GNSS Receiver
Raw GNSS Data
Exportable RINEX Data for PPK
800 Hz
Max Data Output Rate
Made in USA
ITAR-free; short lead times
31 x 31 x 11 mm
Ultra Small Package
RTK Capable
Support for External RTCM 3 Inputs
-40°C to +85°C
Operating Temperature
EXPLORE THE NEW POSSIBILITIES
Featuring a tactical-grade IMU, VectorNav’s trusted INS algorithms, GNSS-Compassing and RTK/PPK-enabled GNSS, the Tactical Embedded provides an unprecedented level of capability into a miniature, embedded package. Get in touch to discuss how the Tactical Embedded can help you realize your next design.
IMU/AHRS
VN-110E
The VN-110E is a Tactical Grade Inertial Measurement Unit (IMU) and Attitude Heading Reference System (AHRS). The VN-110E incorporates the latest MEMS sensor technology, combining a 3-axis accelerometer, a 3-axis gyroscope and a 3-axis magnetometer into a compact, board mountable package. Along with providing calibrated sensor measurements, the VN-110E also computes and outputs a real-time 3D orientation solution that is continuous over the complete 360 degrees of motion.
- IMU Measurements
Accel/Gyro/Mag - Attitude Filter
Yaw/Pitch/Roll - Magnetic Heading
Hard/Soft Iron Calibration
GNSS/INS
VN-210E
The VN-210E is a tactical-grade, high-performance GNSS-Aided Inertial Navigation System (GNSS/INS) incorporating the latest inertial sensor and GNSS technology. The VN-210E combines 3-axis accelerometers, 3-axis gyros, 3-axis magnetometers, a 184-Channel multi-band RTK & PPK capable GNSS receiver into a miniature embedded module to deliver a high-accuracy position, velocity and attitude solution for dynamic applications.
- INS Filter
Position, Velocity and Attitude - IMU Measurements
Accel/Gyro/Mag - Attitude Filter
Yaw/Pitch/Roll
DUAL GNSS/INS
VN-310E
The VN-310E is a tactical-grade, high-performance Dual Antenna GNSS-Aided Inertial Navigation System (Dual GNSS/INS). The VN-310E combines 3-axis accelerometers, 3-axis gyros, 3-axis magnetometers, (1) multi-band GNSS receiver and (1) L1 GNSS receiver into a miniature embedded module to deliver a high-accuracy position, velocity and attitude solution under both static and dynamic conditions.
- GNSS Compass
Static Heading - INS Filter
Position, Velocity and Attitude - IMU Measurements
Accel/Gyro/Mag - Attitude Filter
Yaw/Pitch/Roll
OUT ENGINEER YOUR COMPETITION
VectorNav navigation systems have been integrated into every kind of application, from the deep sea to the stratosphere. Leverage our experience and lessons learned from a vast range of applications. Click below to learn more about some of these applications.
